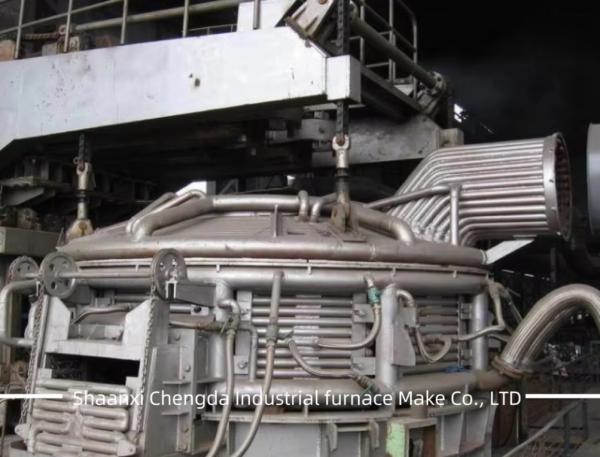

Equipment use:
Mainly used for the treatment of stainless steel acid mud, the
utilization rate of traditional arc heating method is often less
than 80%, so the equipment uses DC + AC mode to effectively recover
valuable metals.
1.2 Process method: DC + AC electric furnace, the process is
simple, high treatment efficiency, is a large batch of solid waste
reaction pretreatment method.
Technical features of DC furnace equipment:
1) DC electric arc furnace than AC furnace heat transfer efficiency
is high, electrode consumption is much less than AC furnace, simple
operation, convenient maintenance.
2) The temperature of the reaction zone of the molten pool is high,
the temperature of the solution at the bottom of the furnace is
uniform, the furnace eye is easy to open, and the iron is smooth.
3) The furnace bottom conductive structure is simple, reliable
operation, convenient installation and maintenance.
4) The heat is concentrated, the crucible area of the melting pool
is close to the bottom of the furnace, and the heat radiation of
the solution slag line area is small, which has a good protection
effect on the protection of resistant materials.
5) The DC electric furnace has a low flicker effect and noise,
which is very beneficial to the power grid and the operator, and
its flicker effect is only 50% to 70% of the AC electric furnace,
and the noise during submerged arc operation is more than 20dB
lower than that of the AC electric furnace.
6) The natural power factor of DC electric furnace is high, and the
power factor can reach 0.90~0.96 without compensation.
7) The integrated rectifier power supply adopts a three-phase
full-bridge rectifier device, and the AC power supply is rectified
into a stable and reliable DC power supply. Heating mode of DC arc
furnace in furnace. The rectifier device is cooled by independent
closed cooling equipment, which is safe and reliable.
8) The electrode lifting control adopts PLC hydraulic proportional
valve mode + manual priority operation mode, and implements voltage
and current double closed-loop control. The use of internationally
renowned low-voltage electrical components
(Mitsubishi/Siemens/Schneider), effectively ensure the reliability
and advanced nature of the equipment.
9) Advanced computer operating system, real-time operation and
operation management of operation process and operation parameters.
Equipment performance indicators:
1) Direct current feeding form: the feeding point should be
directly fed around the central electrode;
2) Working system: 300d/a, electric furnace intermittently working,
continuous melting feed every day, continuous discharge, regular
discharge of metal;
3) Working temperature: 1500~1700℃;
Process Flow Diagram:
