Ac rock wool furnace (HQ)

Product use and process overview:

This equipment is the most stable and continuous production of rock wool advanced equipment. The most common basalt, dolomite, slag and auxiliary materials are used, proportioned according to a certain proportion, heated to a certain temperature, the solution is stratified, and the slag liquid is transported to the centrifuge through the control of the flow port size to continuously produce rock wool products.

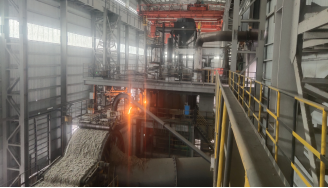

Product production under the graphic:

Description of structural characteristics:

1) The operation of the equipment is flexible and simple, the slag flow is controllable, and the slag is sustainable;
(2) Adopt advanced impedance control method and introduce temperature feedback into control;
(3) high degree of automation, centralized control of the whole smelting process;
(4) Fast melting speed, continuous feeding;
(5) The equipment has stable performance and can work continuously
(6) Less smoke pollution and easy recovery of smoke;

Performance index:
1 Output per hour (finished product) 5 ~ 6 tons
2 Power consumption per ton of product (finished product) ≤1100KWh/T
3 Electric furnace long-term insulation power consumption 700-800KWh/h

Product process diagram:

Equipment component:

1.batching system

2.Charging system

3.Storage bin

4.mixed drying system

5.blanking system

6.Electric furnace power supply system

7.short network system

8.Electrical operating system

9.hydraulic control system

10.Water cooling system

11.electric furnace smelting system

12.iron and slag control

13.Lining laying

  Shaanxi Chengda Industrial Furnace Manufacturing Co., Ltd. is a high-tech enterprise specialized in the research, design, and manufacturing of various industrial furnaces, including AC and DC steelmaking electric arc furnaces, ladle refining furnaces, ferroalloy ore thermal furnaces, ferroalloy refining furnaces, electric slag remelting furnaces, non-standard metallurgical equipment, heat treatment equipment, and various related environmental protection dust removal equipment. The company's product design and manufacturing capabilities have reached 100 tons for electric arc furnaces, 160 tons for ladle refining furnaces, and a capacity range of 3600KVA to 35000KVA for ore thermal furnaces. In accordance with national industrial policies, we have designed high and low voltage compensation systems, dust removal systems, ferroalloy DC furnaces, and new energy equipment suitable for the actual operation of the equipment. For inquiries, please contact Mr. Du at 13991381852 or Mr. Chen

13709182307.
