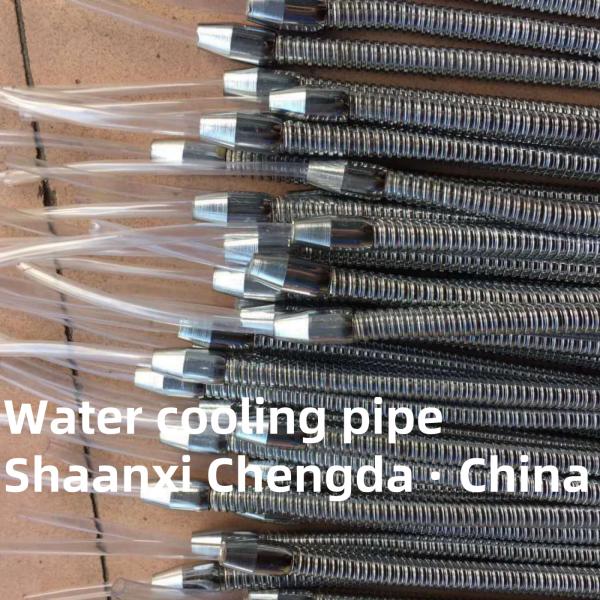

Electric arc furnace water cooling pipe
"Electric arc furnace water cooling pipe and control system" is the
use of pressure, temperature, flow measurement of the system for
dynamic monitoring and control. Through the detection of pressure
and current, the speed of the pump and the number of started pumps
are controlled. Through the detection of water temperature, the
water supply of the system is controlled.
Through the dynamic monitoring of the incoming and outgoing water
flow, the water cooling component is detected.
一, Water leakage detection and alarm control of water cooling
components
1) Detect the incoming and outgoing water flow of each component
2) Compare the water detection flow rate in and out of each
component and make alarm control to avoid water leakage of each
water-cooling component causing large boiling and explosion
accidents in the furnace.
二, Water temperature detection and control of each water cooling
component
1) The water temperature of the water-cooling component is detected
2) The use of PLC to control the water flow according to the change
of water temperature, which can not only ensure the service life of
the water-cooled component, but also effectively reduce the energy
loss
(3) According to the change of water consumption of electric arc
furnace, control the constant pressure water supply of the pump,
and use PLC and frequency conversion technology to control the
constant pressure of the pump to ensure that the electric arc
furnace water supply is constant pressure, while reducing energy
consumption.
