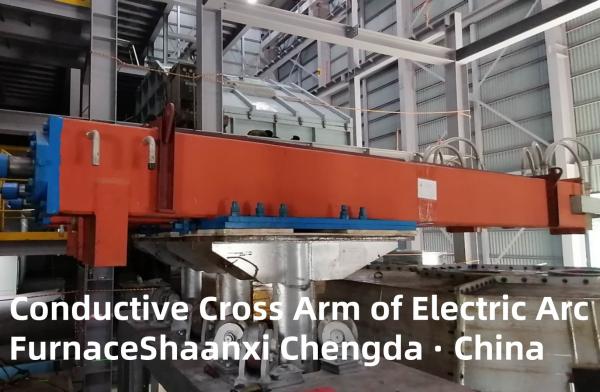

Conductive Cross Arm of Electric Arc Furnace

Shaanxi Chengda electric arc furnace water-cooled composite conductive transverse arm is rectangular beam structure:

It is welded by copper-steel composite plate, and the copper plate on its outer surface conducts electricity, combining the two functions of the electrode cross arm and the support electrode into one. Because the conductive copper tube and many insulation links on the traditional electrode cross arm are eliminated, the structure is simplified, the flow area is increased, and the impedance value and maintenance workload can be greatly reduced. It can be widely used in 5T-100T arc furnace and large tonnage ladle refining furnace.

Product features:
1,The product is composed of copper steel composite plate welding electrode arm, in which the copper layer is used to conduct electricity, the steel layer is used to support various mechanical forces.
2,There is water interlayer in the electrode arm frame, which is cooled by water and can withstand the burning of the electric furnace flame.
3,The electrode clamping using a butterfly spring, drive to hold the electrode, start or hydraulic release form. The clamping force is large and the clamping electrode is reliable.
4,Electrode holder adopts copper alloy or copper steel composite plate, internal water cooling, long service life.

  Shaanxi Chengda Industrial Furnace Manufacturing Co., Ltd. is a high-tech enterprise specialized in the research, design, and manufacturing of various industrial furnaces, including AC and DC steelmaking electric arc furnaces, ladle refining furnaces, ferroalloy ore thermal furnaces, ferroalloy refining furnaces, electric slag remelting furnaces, non-standard metallurgical equipment, heat treatment equipment, and various related environmental protection dust removal equipment. The company's product design and manufacturing capabilities have reached 100 tons for electric arc furnaces, 160 tons for ladle refining furnaces, and a capacity range of 3600KVA to 35000KVA for ore thermal furnaces. In accordance with national industrial policies, we have designed high and low voltage compensation systems, dust removal systems, ferroalloy DC furnaces, and new energy equipment suitable for the actual operation of the equipment. For inquiries, please contact Mr. Du at 13991381852 or Mr. Chen
